PROTOKOLLAT JA NIIDEN SELITYKSET



Zeroplus laitteiden mukana tulee IIS, UART, SPI ja 7-Segment LED protokollat. Lisäksi ilmaisia lisäprotokollia voi valita laitteesta riippuen 2-30 kpl
Protokollia ja lisäosia voi ostaa myös myöhemmin lisää.

LAP logikka / protokolla analysaattoriin saatavat protokollat:

Auto teollisuus: CAN 2.0B, DSI Bus, FlexRay 2.1A, LIN 2.1, MVB ja WTB

PC-järjestelmiin: GPIB, FWH, Low Pin Count, LPC-SERIRQ, LPT, PCI, PECI, PS/2, SVID, USB 1.1 ja USB 2.0

IC-liitäntään: BDM, HPI, 1-WIRE, JTAG 2.0, MCU-51 DECODE, 3-WIRE, I2C, MICROWIRE, SPI, SLE4442, SSI liitäntä, SPI PLUS, ST7669, UART (RS232/RS422/RS485), 1-Wire (Advanced) ja Serial Wire Debug (SWD)

Digital Audio: AC97, DSA Interface, HD Audio, MIDI, HDMI CEC, I2S, PCM, PSB Interface, S/PDIF ja STBus

Logiigga: ARITHMETIC LOGIC, DIGITAL LOGIC , JK FLIP-FLOP ja UP DOWN COUNTER

Muisti: Compact Flash 4.1, eMMC, I2C (EEPROM 24L), I2C(EEPROM 24LCS61/24LCS62), MICROWIRE (EEPROM 93C), SPI Compatible (Atmel Memory), SAMSUNG K9 (NAND Flash), SD 2.0/SDIO ja UNI/O

Opto elektroniikka: 7-SEGMENT LED, CCIR656, CMOS IMAGE, DALI Interface, DM114/DM115, DMX512, LCD12864, LCD1602, LG4572, S2Wire/AS2 Wire ja SCCB

Infrapuna: IRDA, NEC PD6122, Philips RC-5, Philips RC-6 ja PT2262/PT2272

Teholähteet: BMS, HDQ, PMBus 1.1, SDQ ja SMBus 2.0

Langaton: Differential Manchester, DigRF, ISO7816 UART, KEELOQ code, MANCHESTER, MII, SIGNIA 6210, MILLER, MIL-STD-1553, MODIFIED MILLER, SWP, WIEGAND ja WWV/WWVH/WWVB

Muu: DS1302, DS18B20, HART, KNX, ModBus, MODIFIED SPI, OPENTHERM 2.2, PROFIBUS, SHT11 ja YK-5

AUTO TEOLLISUUS PROTOKOLLAT

Kuva Tuotekoodi/kuvaus Tekniset tiedot

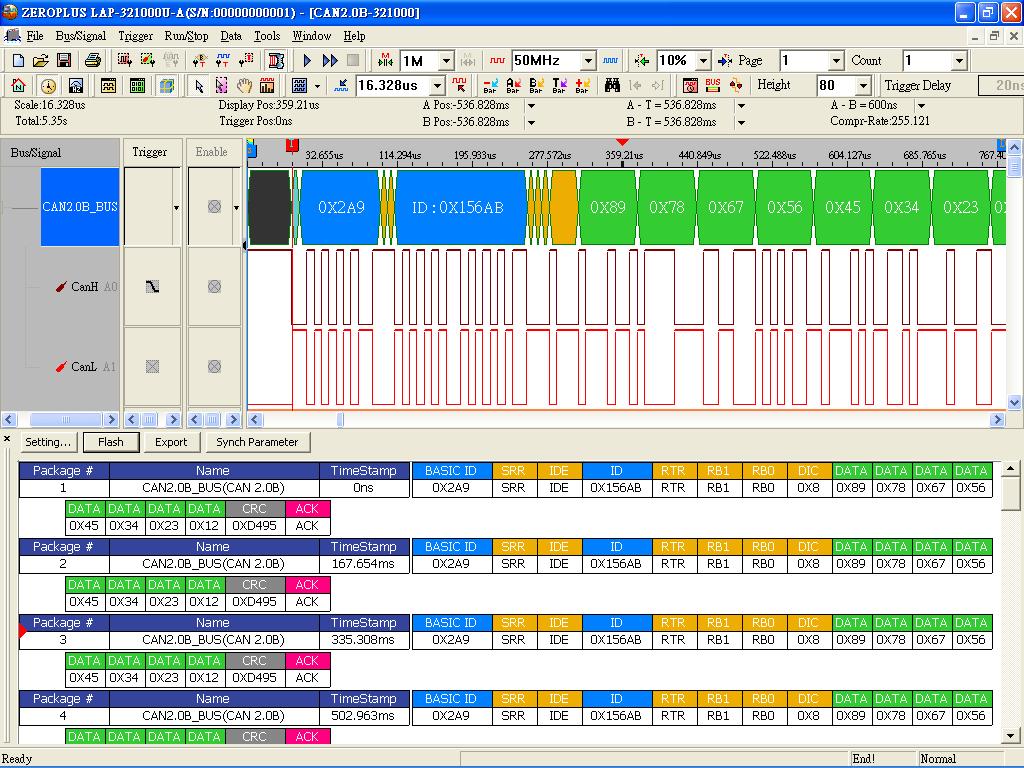

CAN 2.0B
Can H, Can L, 10K~1Mbps, 2.5V
When engineers analyze the data of signal, they only rely on counting the waveform to decode signals and find the problem. It is really waste time and power. However, the Zeroplus Logic Analyzer can not only collect the signals for one time, the special Protocol Analyzer decoding software of Zeroplus Logic Analyzer can also start decoding automatically. It can provide the integrated signal format content of each data for users, including standard type, extension type, long-distance format, error format and over-loading format and so on.
CAN Protocol Analyzer signal consists of two signal wires and a grounding wire, because of excellent network feature, the signal can make user reduce making cost and supply strong detecting error rules, it also offer user reduce the error when correlative signals transfer, CAN Protocol Analyzer signal is widely used for all kind of products, however, it is mostly used in vehicle electron.
After turned on the CAN Protocol Analyzer bus auto-coding function, user not only can customize the parameter and the start bit of data, but also can customize the color setting part, in order to improve in distinguishing data and comfortable degree of looking. Besides adjusting speed, we can aim to its error to do slightly sampling adjusting, in order to solve the obstacle to distinguish data Using Zeroplus Logic Analyzer and bus auto-coding software can help you reduce the time of developing signal and improve the efficiency of developing new product. You can supply your correlated information for us; Zeroplus will make the customized bus analysis software for you as your requirement.

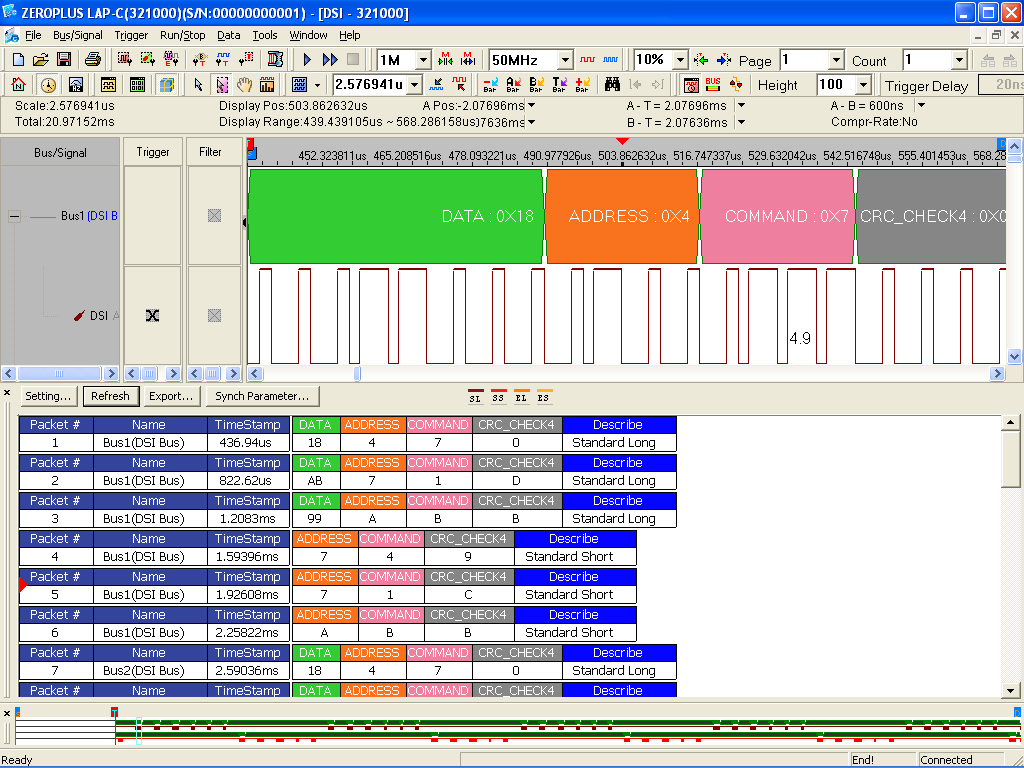

DSI Bus
DSI Bus, 5KHz above
DSI (Distributed Systems Interface)Bus, developed by the Freescale, is an Automotive Protocol. It is mainly used for the sensor of the Automotive Airbag. At present, many manufacturers of the Airbag System have adopted the Protocol Analyzer DSI Bus, such as TRW and DENSO (DENSO CORPORATION). The advantages of the Protocol Analyzer DSI Bus are that all Sensors can be connected in serial to do the transmission, and with the help of the Protocol Analyzer DSI Bus, the Senors can be powered on.
At present, the safety of driving an automotive is attracting people’s attention, and the Automotive Airbag is being developed fast. The Protocol Analyzer DSI Bus is used for the Automotive Airbag. Specifically, the Protocol Analyzer DSI Bus can be used to connect the sensors which are installed in the all positions of the automotive in serial, which are used to detect the situation of the danger when the automotive is crashed. Because the cost is low, it can be widely used for all kinds of the automotive.
Protocol Analyzer DSI Bus Decoding Module of Zeroplus Technology can be used to analyze the packets in the DSI Bus signal, such as DATA, ADDRESS, COMMAND, CRC and UNASSIGNED. The Baud Rate of the Protocol Analyzer DSI Bus can be detected automatically in the Protocol Analyzer DSI Bus Decoding Module of Zeroplus Technology, which is used conveniently; at the same time, it can improve the working efficiency and save the time of calculating the decoding by hands during the development.

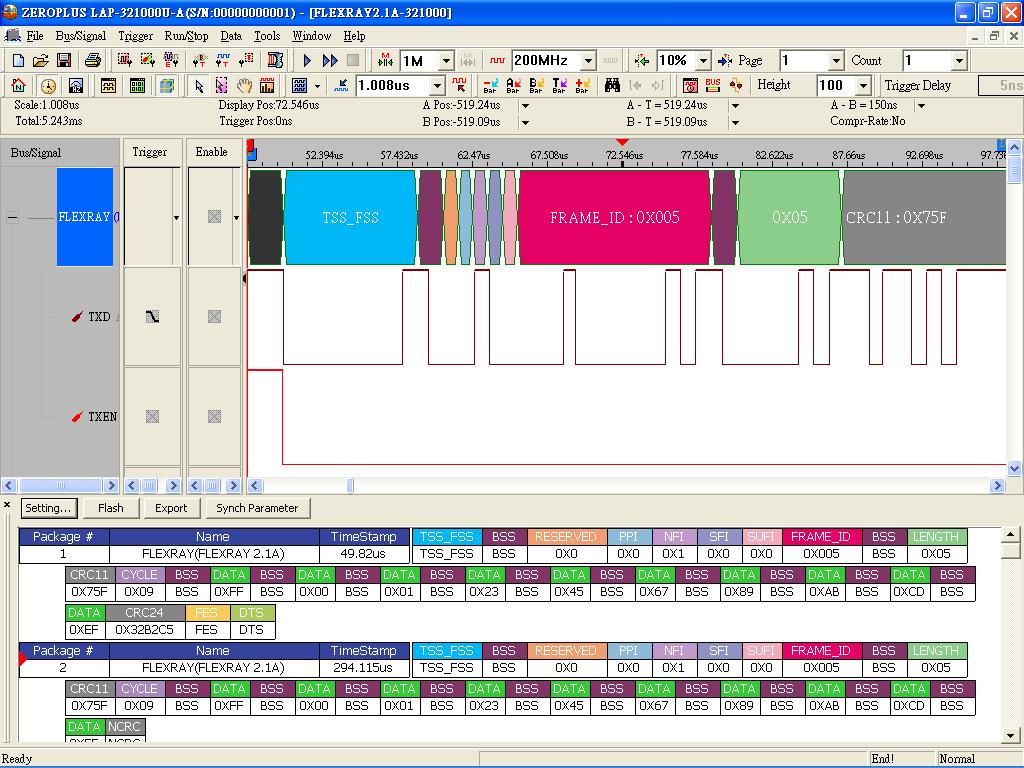

FLEXRAY 2.1A
TxD/RxD,TxEN/RxEN, 10M
There are so many signal kinds for special Network , tha normal hasLIN,CAN,FlexRay,TIP/C,SAEJ1850 ,TFCAN,ASRB,MOST and so on , The American Auto Engineer Association (SAE) separates the special serial signals into three classes according to the transmission speed ,there are A,B and C . The class of A contains TTP/A (time Triggered Protocol/A) and LIN(Local Interconnect Net work),the transmission speed is lower . The class of B contains J1850, VAN and low speed CAN.The class of C contains TTP/C, FlexRay and high-speed CAN(ISO11898-2). It is used in the relative parts of Auto safety or higher and more stable system ,such as Power System and so on ,the transmission speed is quicker , the normal speed is from 125Kbps to 10Mbps . FlexRay is one kind of high-speed transmission Bus (10Mbps per channel), it has the characteristic of time-sharing multiple-work and owns the functions of high and stable transmission and debug , it is very suitable for the new generation Auto control system.
FlexRay is the vehicle signal which is commended by the Philips company and Freescale company ,because it owns the superior efficiency , it can replace the original CAN Protocol Analyzer to save the space of hardware according to the transmission of FlexRay, what’s more , it is with multiple nods, it can make FlexRay become the connection between the main network of Auto electron and other separated network system, the Cycle deflection of FlexRay signal is very low , it makes the FlexRay become the best choice in the instant control system for necessary.
FlexRay consists of TXD,TXEN,RXD and RXEN, when connecting the signal , it only needs two signal lines to operate, it can quickly decode the different state of signals according to the FlexRay Analysis Module of Zeroplus Technology Logic Analyzer . TSS :Transmission start sequence FSS :Frame start sequence BSS :Byte start sequence FES :Frame end sequence DTS :Dynamic trailing sequence CAS :Collision avoidance symbol MTS :Media access test symbol WUS :Wake up symbol Because FlexRay owns the characteristic of time-sharing multiple-work , flexible degree of signal and high degree of Application,correspondingly,the structure of signal package is also more complex .According to the FlexRay analysis module of Zeroplus Technology Logic Analyzer , it can make user to firstly know what is the display state of signal through the cob display mode of Special Bus , it is easy to face the complex serial signal and improves the efficiency of work.
LIN 2.1
Lin Bus, 2.4Kbps ~ 20Kbps, 18V
In special electron, LIN Protocol Analyzer is one kind of low speed, it is used in door panel , door window, rearview mirror or door mirror control, it is one kind of low cost special electron resolvation project; With the technology changing quickly , these signals need the relative exploitation tools, to make the engineer completing researchment work smoothly, then the LIN Protocol Analyzer is coming into being.
LIN(Local Interconnect Network) Protocol Analyzer is one kind of Bus interface ,the special electron through the low cost trend producing. After having the LIN Protocol Analyzer, there have factual need selection during control the lower equipments periphery, such as door panel control?rearview mirror control?door window control and so on ; what’s more, it can apply in the auto periphery and no need high speed transmission , such as HAD or ABS and so on.
LIN Protocol Analyzer only uses one signal line to transmit data, the signal frequency is from 24Kbps to 20Kbps or more . for the signal speed is not so high, it starts simple equipment control in the auto electron system, such as door window? door panel ?auto clearstory?reaview mirror and so on . LIN Protocol Analyzer adopts sending frament format to transmit in signal transmission, In the completed fragment format , including HEADER and RESPONSE,the HEADER seperats three parts: SYNCH BREAK?SYNCH BREAK and INTEND FIELD; The SYNCH BREAK is in order to distinguish fragment start, it sends by host computer, the purpose is to make the all connecting instrument sychnronizatio. RESPONSE consists DATA FIELD and CHECKSUM FIELD , the DATA FIELD is charge of taking data field in the fragment format , the CHECKSUM FIELD is charge of checking data validity.

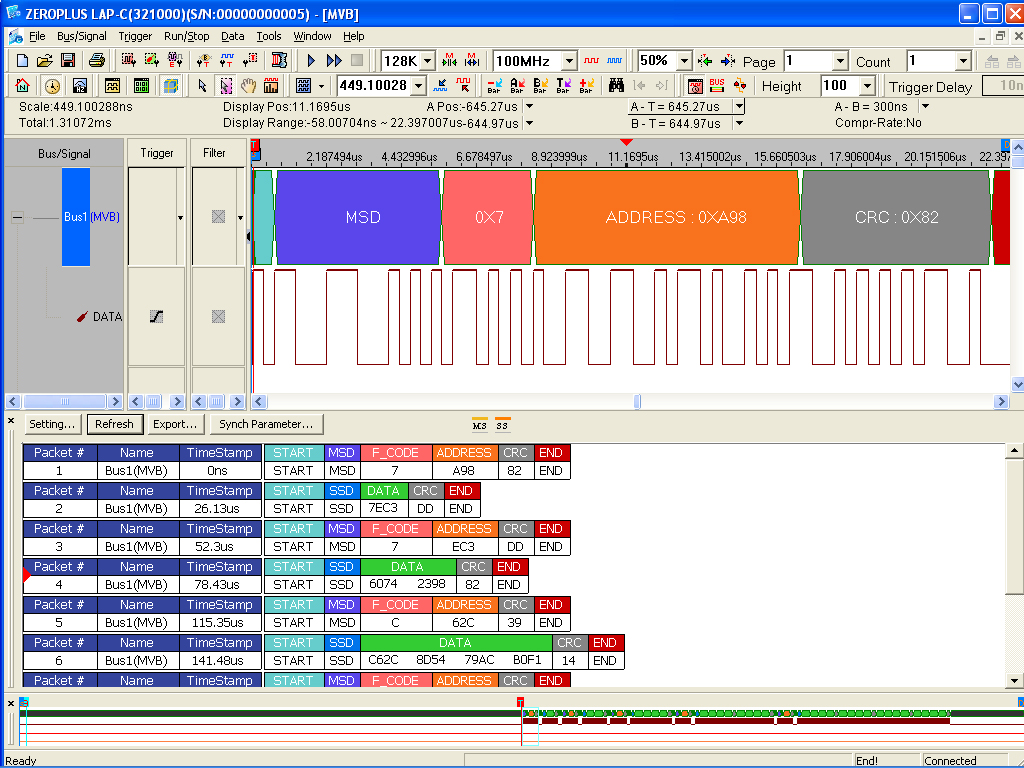

MVB
MVB, 1.5MHz, käytetään junissa
With the development of the embedded Microcomputer Control Technology and the Fieldbus Technology, the Process Control for the modern train has developed from the centralized Direct Digital Control (DDC) system to the Distributed Control System (DCS) which is based on the network. MVB (Multifunction Vehicle Bus) which is based on the distributed control is a recommended project of IEC61375-1 (1999) TCN (Train Communication Network). MVB possesses the features of high timeliness and reliability. According to the modernization development trade of the train and vehicles and the requirements of the reliability, safety and communication timeliness, MVB will gradually become the communication bus standard of the next generation vehicles.
The Protocol Analyzer MVB adopts the Manchester Encoding Technology according to the IEC-61375. The fixed Frequency is 1.5Mbps, and there is an 8-bit CRC following each 64-bit Frame data. The Frame of MVB can be divided into two parts, Master Frame and Slave Frame, which consist of START, DATA, CRC and END. The type of the different Frame is judged by the START. There are three kinds of Transmission Medium of Protocol Analyzer MVB, which are ESD (electric short-distance medium), EMD (electric long-distance medium) and OGF (optical fiber medium). Specifically, the transmission distance of the ESD (RS485 is not isolated) is 20m and it can connect 32 devices at most; the transmission distance of the EMD (Transformer is isolated) is 200m and it can connect 32 devices at most; the transmission distance of the OGF can be up to 2000m and it outputs data through the Star Coupler.
The Protocol Analyzer MVB Decoding Module of Zeroplus Technology can analyze the status of the Packets (START, MSD, SSD, F_CODE, ADDRESS, DATA, CRC, END, etc.) in the Transmission and Control signals of the MVB. In the Protocol Analyzer MVB Decoding Module of Zeroplus Technology, the packet in the signal will be displayed with the graphic mode, which can improve the working efficiency and save the time of the manual decoding and calculation.
WTB
1MHz, käytetään junissa
The Train Communication Network (TCN) can be divided into two parts, WTB and MVB. Thereinto, the WTB is used for connecting the Wire Trains which can be grouped dynamically, and the MVB is used for connecting the fixed devices in the train. WTB is mainly responsible for the communication among the carriages of the train. This Train Bus has 32 nodes at most, and each train can have one or more nodes.
The Transmission Data of WTB adopts the Manchester Encoding, and the Transmission Rate is 1MHz; the time width of a Bit is 1us. When the former part of a Bit is Low Level and it is changed into High Level in the middle of the Bit Time, it is represented as Logic 1. Conversely, when the former part of a Bit is High Level and it is changed into Low level in the middle of the Bit Time, it is represented as Logic 0.
The Protocol Analyzer WTB Decoding Module of Zeroplus Technology can analyze the status of the Packets (HEAD, FLAG, DATA, DESTINATION, LINK_CONTROL, SOURCE, DATA_SIZE, FCS/NFCS, END, etc.) in the Transmission and Control signals of the WTB. In the Protocol Analyzer WTB Decoding Module of Zeroplus Technology, the packet in the signal can be displayed with the graphic mode, which can improve the working efficiency and save the time of the manual decoding and calculation.


PC PROTOKOLLAT

Kuva Tuotekoodi/kuvaus Tekniset tiedot
GPIB
DIO1~8, ATN, DAV ,NDAC, NRFD, EOI, SRQ, IFC, REN, 1MHz, 2V
GPIB(General-Purpose Interface Bus)is a kind of the most common Device Communication Interface. It was developed by HP in 1965 and named as HP-IB at first. Until 1975, the HP-IB was defined as an IEEE-488 Standard by the IEEE Association and renamed as GBIP. In 2003, the IEEE-488 was updated to the IEEE-488-2003 and defined the 8-bit Digital Parallel Communication Interface. So the Transmission Speed can be up to 8Mbps, the distance of the cable can be up to 20m and fourteen Devices can be connected at most.
The GPIB was defined as the IEEE 488 Standard by the IEEE in 1975. With the constant evolution, the SCPI (Standard Commands for Programmable Instruments) of the programmable Instrument was added in 1987, so multiple Devices can be controlled through the PC. Nowadays, the GPIB has become a rather common Interface and many manufacturers have used it to develop their products, such as Keithley Test point and NI Lab view.
Protocol Analyzer GPIB of Zeroplus Technology can be used to analyze the signal of the GPIB and the packets (such as Command, Data, Ren, /Ren, End, IDY, SRQ and IFC) in the corresponding signal. With the help of the ZEROPLUS Protocol Analyzer GPIB, the packet of the Protocol Analyzer can be displayed with the graphical mode, the working efficiency can be improved and the time of calculating the decoding manually can be saved during the development.
FWH
FWH mode:CLK, FWH0~FWH4;PP mode:DQ0~DQ7, ADDR0~ADDR10, R/C, WE, OE, maks.33MHz, maks.3,6V
FWH (Firmware Hub), instituted by Intel, is kind of Device Protocol (Intel Product Code: 82802). It mainly uses the internal Flash Array Device to store the Data and communicates with the ICH through the LPC/FWH protocol. And it can support 16 FWH Devices at most, which will reduce the Pin Count from the BIOS to the Flash ROM greatly.
FWH (Firmware Hub), instituted by Intel, is kind of Device Protocol (Intel Product Code: 82802). It mainly uses the internal Flash Array Device to store the Data and communicates with the ICH through the LPC/FWH protocol. And it can support 16 FWH Devices at most, which will reduce the Pin Count from the BIOS to the Flash ROM greatly.
Protocol Analyzer FWH of Zeroplus Technology can be used to analyze the signal of the FWH and the packets (such as Write, Read, IDSEL, Address, IMSIZE, Data, TAR, RSYNC and Describe) in the corresponding signal. With the help of the ZEROPLUS Protocol Analyzer FWH, the packet of the Protocol Analyzer can be displayed with the graphical mode, the working efficiency can be improved and the time of calculating the decoding manually can be saved during the development.
